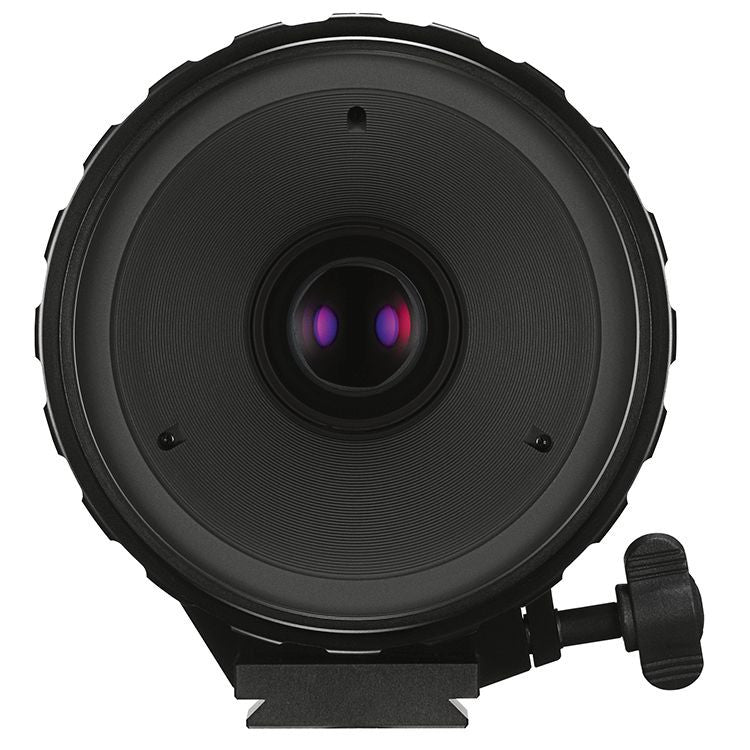

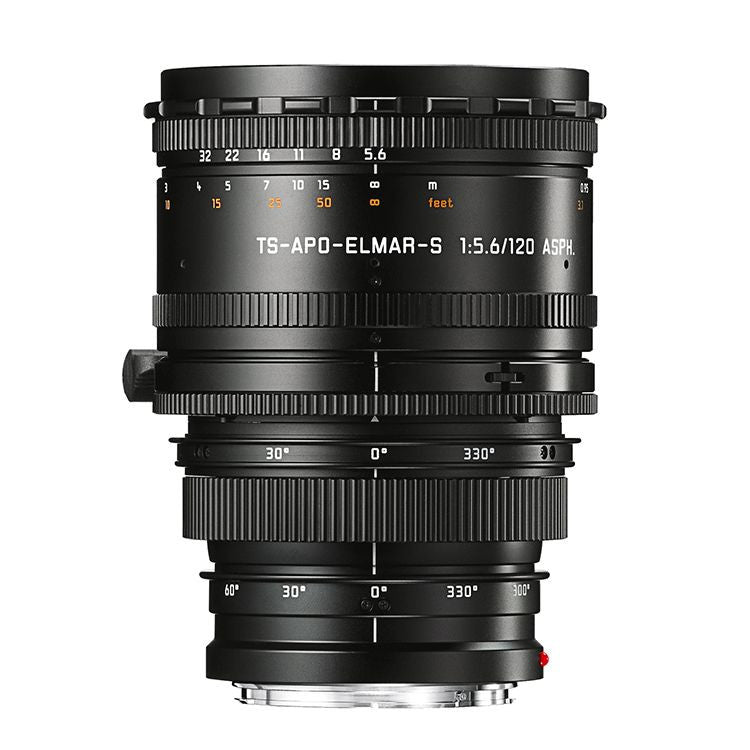

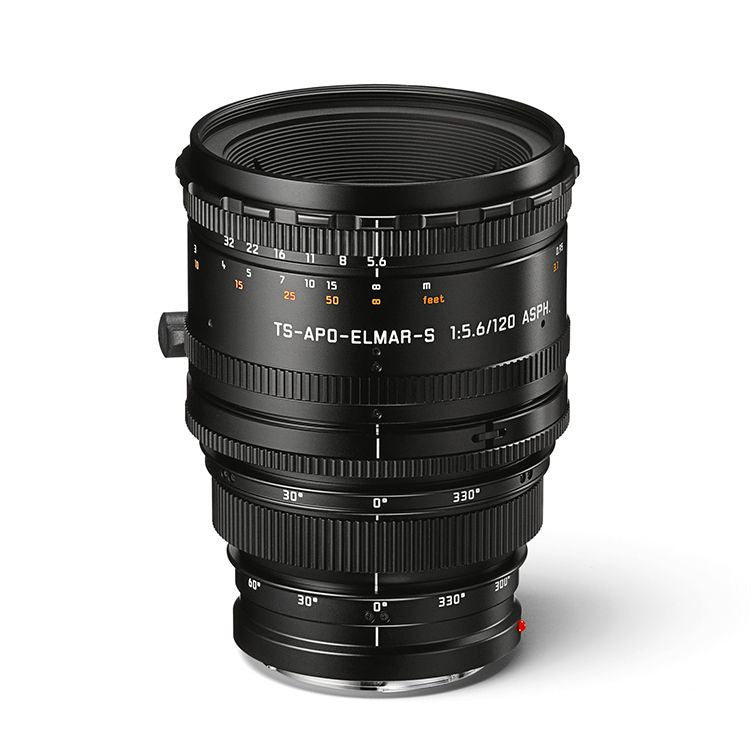

Leica TS APO Elmar S 120mm f/5.6 ASPH Lens - Professional Medium Format Camera Lens for Portrait & Landscape Photography | Perfect for Studio, Outdoor & Travel Photography

$4232.25 $7695 -45% OFF

Free shipping on all orders over $50

7-15 days international

19 people viewing this product right now!

30-day free returns

Secure checkout

40392975

Guranteed safe checkout

Perspective Control
Similar to the movements of a view camera, the Leica TS-APO-ELMAR-S 120mm f5.6 ASPH., gives the photographer complete control over the perspective and the focal plane. The lens is characterized by an image circle increased by 153mm, which means that the lens can be shifted by up to 12 mm from the optical axis in any direction. This allows the user to change the view without changing the perspective, thus supporting, for example, product shots without irritating converging lines.

Independent of the shift, you can tilt the lens by up to 8° in any direction, thus tilting the focal plane in line with Scheimpflug's principle.

The exterior of the Leica TS-APO-Elmar-S 120mm f5.6 ASPH. is different from that of other S lenses, due to its special design as a tilt/shift lens. The lens has a total of four rings for tilt and shift, one turn-and-slide ring each for adjusting the tilt and shift directions, and one ring each for adjusting the tilt and swing respectively. It additionally features a tripod plate with a 1/4" and a 3/8" thread, which allows the user to fix the lens in any orientation thanks to the rotating clamp and clamping screw.

The lens's large image circle simultaneously supports a shift of up to 12 mm and a tilt of up to 8°. Both the tilt and the shift mechanisms rotate through 360°, so that the respective adjustments can be made in any direction and independently of one other.

Lens	Tilt/shift telephoto lens with superior imaging quality for Leica S-Cameras
Compatible cameras	All Leica S-Models
Angle of view lens in neutral setting	~23,6°, 20°, 13,6° (diagonal, horizontal, vertical), equivalent to ~96 mm focal length in 35 mm format
Optical Design
Number of lenses / groups	6 / 4, 1 Aspherical surface
Position of entrance pupil	65.6 mm
Shift / tilt Displacement	Max. 12 mm / .5 inches, in all directions
Tilt angle	Max. 8°, in all directions
Focusing Working range	0.92 m ( 3 ft) to infinity
Scales	Combined meter / feet graduation
Smallest object field	~159 x 239 mm
Largest reproduction ratio	1 : 5.3
Aperture Setting / function	Manual presetting, setting and open/close with separate rings, one-third values selectable
Smallest aperture value	32
Bayonet	Leica S quick-change bayonet
Filter mount	Inner threaded mount for E95 filters, non-rotating filter mount
Finish	Black anodized
Overall length to bayonet flange	~144 mm / 5.7 inches
Maximum diameter	~108/57.7 mm / 4.25/2.27 inches with/without tripod plate
Weight	~1110 g / 2.45 lb
