SDI Video Outputs
2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.
$50 = Free Delivery! No Code Needed
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
62576198
CONVCMIC/HS03G/WPSU
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.
HDMI Type A in.
Auto detection of SD or HD.
USB Type‑C.
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
4:2:2
YUV
Automatically detects SD, HD and 3G-SDI
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
4:2:2
YUV
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Mac OSX™ and Windows™ software via USB.
Via USB.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Via software utility.
2 W
4.4 to 5.25V DC
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing

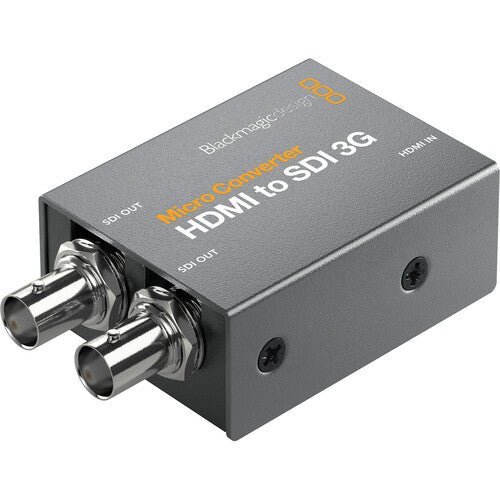

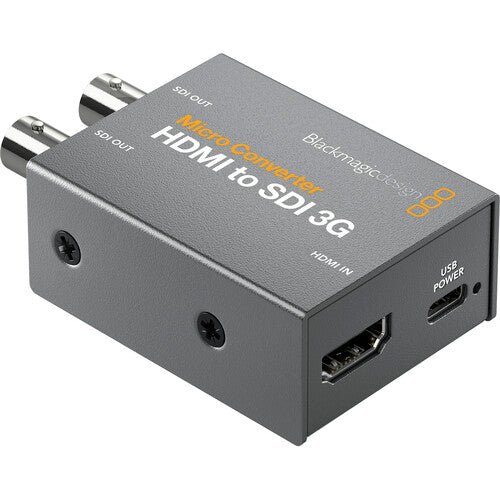

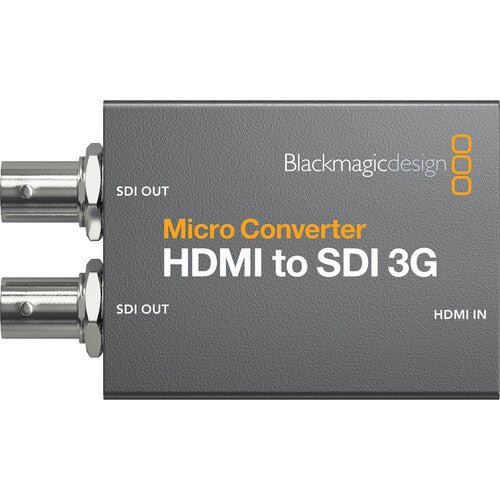

Micro Converter HDMI to SDI 3G
+5V universal power supply with international socket adapters
3 Year Limited Manufacturer's Warranty.
